Cartographer 记录

一、安装记录

遇到abseil安装失败的情况下

到/usr/local/lib lib/pkgconfig /usr/local/stow/absl 下把absl相关的文件全部删除

再重新安装

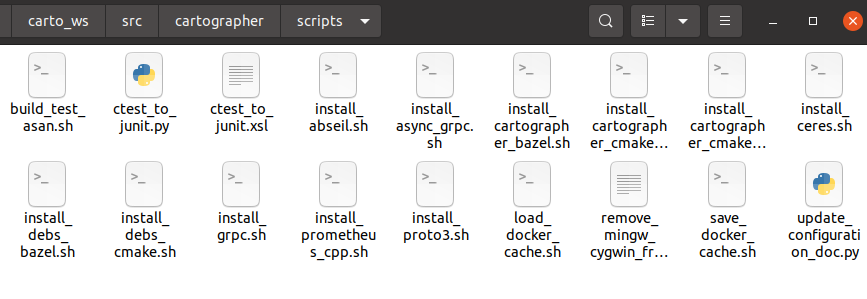

使用脚本自动安装和carto里面的script是一致的

二、运行记录

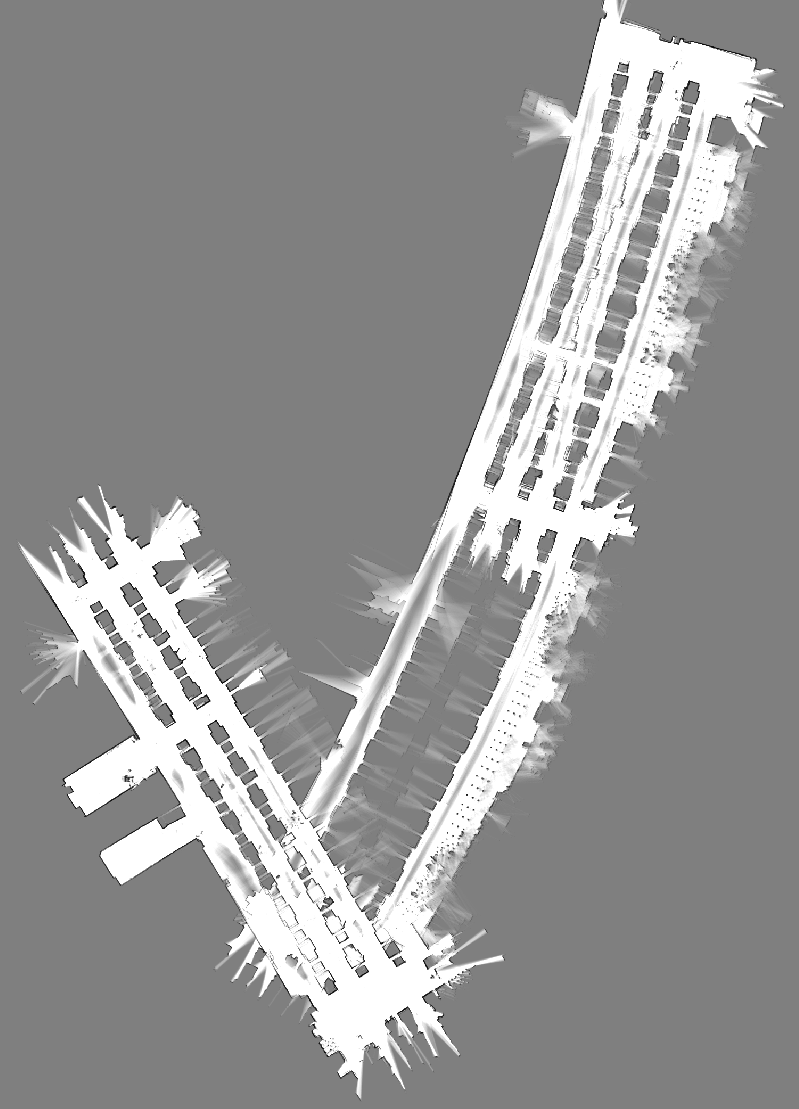

运行纯laser scan建图首先编写launch文件其中加载configuration_files路径下的lua配置文件其中的remap中的to话题需要更改为bag中的laser的topic

<launch>
  <!-- bag的地址与名称 -->
  <!-- <arg name="bag_filename" default="$(env HOME)/bagfiles/rslidar-outdoor-gps-notf.bag"/> -->
  <arg name="bag_filename" default="$(env HOME)/bagfiles/slam-filtered.bag"/>

  <param name="/use_sim_time" value="true" />

  <node name="cartographer_node" pkg="cartographer_ros"
      type="cartographer_node" args="
          -configuration_directory $(find cartographer_ros)/configuration_files
          -configuration_basename sz.lua"
      output="screen">
    <remap from="scan" to="front_scan" />
  </node>

  <node name="cartographer_occupancy_grid_node" pkg="cartographer_ros"
      type="cartographer_occupancy_grid_node" args="-resolution 0.05" />

  <node name="rviz" pkg="rviz" type="rviz" required="true"
      args="-d $(find cartographer_ros)/configuration_files/demo_2d.rviz" />
  <node name="playbag" pkg="rosbag" type="play"
      args="--clock $(arg bag_filename)" />
</launch>

然后是编写lua配置文件

include "map_builder.lua"
include "trajectory_builder.lua"

options = {
  map_builder = MAP_BUILDER,
  trajectory_builder = TRAJECTORY_BUILDER,
  map_frame = "map",
  tracking_frame = "front_laser",
  published_frame = "front_laser",
  odom_frame = "odom",
  provide_odom_frame = true,
  publish_frame_projected_to_2d = false,
  use_pose_extrapolator = true,
  use_odometry = false,
  use_nav_sat = false,
  use_landmarks = false,
  num_laser_scans = 1,
  num_multi_echo_laser_scans = 0,
  num_subdivisions_per_laser_scan = 1,
  num_point_clouds = 0,
  lookup_transform_timeout_sec = 0.2,
  submap_publish_period_sec = 0.3,
  pose_publish_period_sec = 5e-3,
  trajectory_publish_period_sec = 30e-3,
  rangefinder_sampling_ratio = 1.,
  odometry_sampling_ratio = 1.,
  fixed_frame_pose_sampling_ratio = 1.,
  imu_sampling_ratio = 1.,
  landmarks_sampling_ratio = 1.,
}

MAP_BUILDER.use_trajectory_builder_2d = true

TRAJECTORY_BUILDER_2D.submaps.num_range_data = 35
TRAJECTORY_BUILDER_2D.min_range = 0.3
TRAJECTORY_BUILDER_2D.max_range = 8.
TRAJECTORY_BUILDER_2D.missing_data_ray_length = 1.
TRAJECTORY_BUILDER_2D.use_imu_data = false
TRAJECTORY_BUILDER_2D.use_online_correlative_scan_matching = true
TRAJECTORY_BUILDER_2D.real_time_correlative_scan_matcher.linear_search_window = 0.1
TRAJECTORY_BUILDER_2D.real_time_correlative_scan_matcher.translation_delta_cost_weight = 10.
TRAJECTORY_BUILDER_2D.real_time_correlative_scan_matcher.rotation_delta_cost_weight = 1e-1

POSE_GRAPH.optimization_problem.huber_scale = 1e2
POSE_GRAPH.optimize_every_n_nodes = 35
POSE_GRAPH.constraint_builder.min_score = 0.65

return options

其中tracking_frame 指的是全部转到这个坐标系下，因为这里使用的是纯laser建图，如果有imu的话可以改成imu的frame_id，一般是imu_link published_frame指的是发布的话题tf: map -> front_laser
